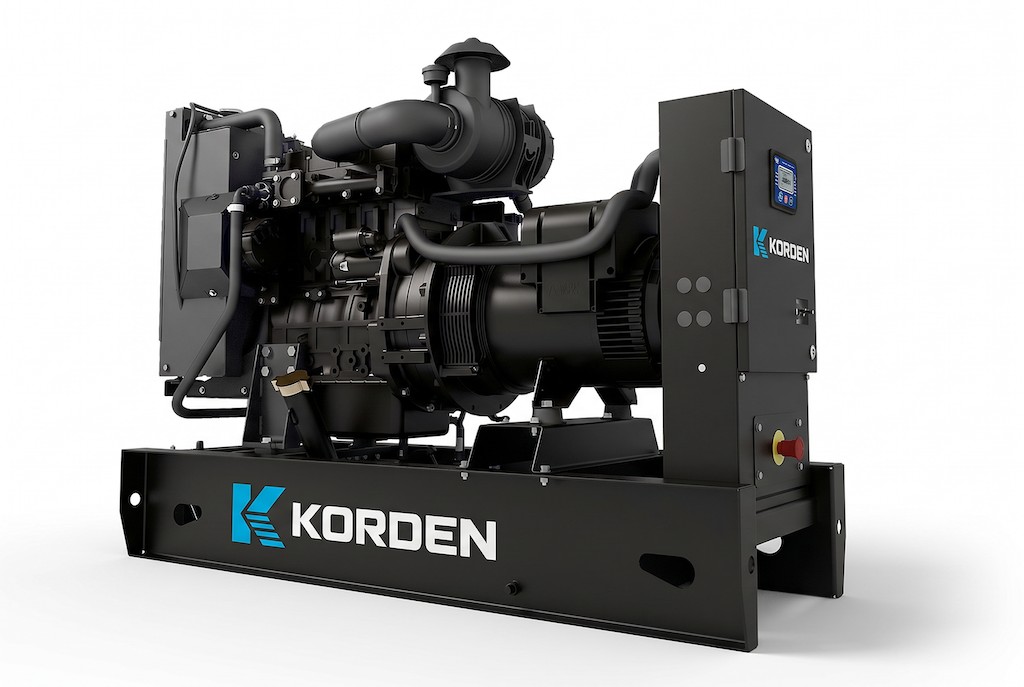

KORDEN · Diesel Generator Set

KDN-P10

Name: KDN-P10
Brand: Arab Tower

11 kVA standby diesel generator set. Powered by Perkins 403A-11G with Leroy Somer LSA 40 VS1 and Auto Mains Failure (AMF) control — supplied, installed, tested and commissioned.

Request a Quotation Download Datasheet

Standby

kVA · 9 kW

Prime

kVA · 8 kW

Voltage

400/230V, 3-Phase

50 Hz · PF 0.8 lagging

Technical Specification

Power Ratings

Standby kVA	11 kVA
Standby kW	9 kW
Standby Current	16 A
Prime kVA	10 kVA
Prime kW	8 kW
Prime Current	14 A
Frequency	50 Hz
Voltage	400/230V, 3-Phase
Power Factor	0.8 lagging

Engine

Make & Model	Perkins 403A-11G
Optional Engine	Cummins S3.8-G6
Cylinders	3 In-Line
Displacement	1.131 Liters
Bore × Stroke	77 × 81 mm
Aspiration	Naturally Aspirated

Alternator

Make & Model	Leroy Somer LSA 40 VS1
Options	Stamford S1L2-F / Mecc Alte ECP28-1S
AVR	Digital R450
Voltage Regulation	±1%

Control & Fuel

Controller	Auto Mains Failure (AMF)
Controller Model	DSE 7320 MKII Co
Fuel Tank	80 Liters L
Runtime @ 75%	34.8 Hours
Cooling	Water-Cooled, Radiator Mounted
Max Ambient	40°C

Dimensions & Weight

Open Frame (L×W×H)	1500×610×990
Open Frame Weight	280 kg
Silent Canopy (L×W×H)	2000×900×1180
Silent Canopy Weight	690 kg
