KORDEN · Diesel Generator Set

KDN-P2000

Name: KDN-P2000
Brand: Arab Tower

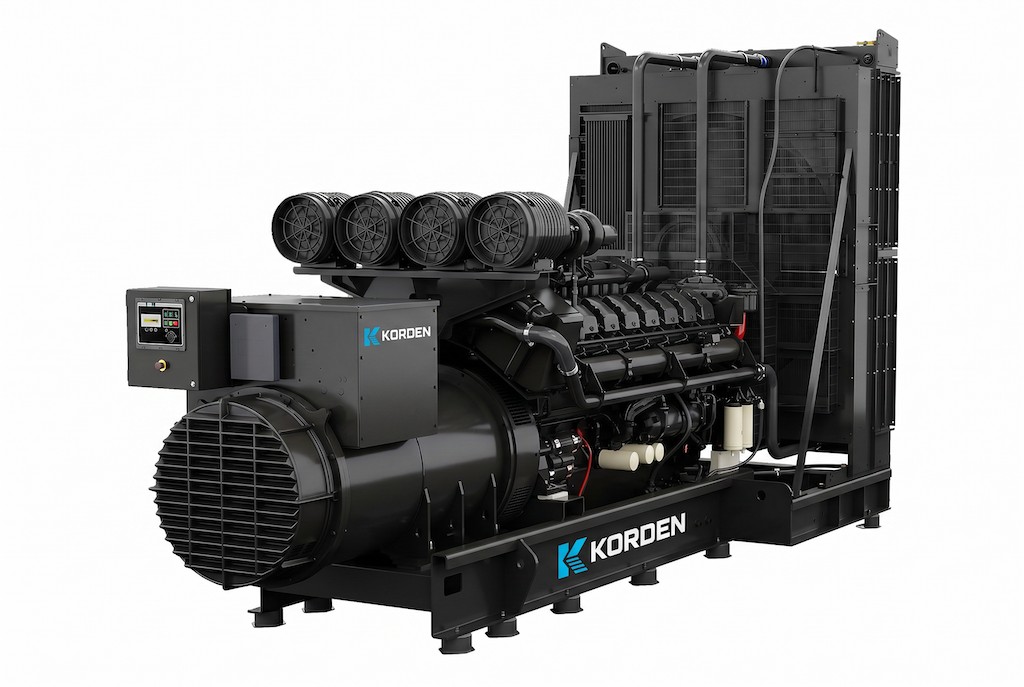

2000 kVA standby diesel generator set. Powered by Perkins 4016-61TRG1 with Leroy Somer LSA52 and Auto Mains Failure (AMF) control — supplied, installed, tested and commissioned.

Request a Quotation Download Datasheet

Standby

2000

kVA · 1600 kW

Prime

1850

kVA · 1480 kW

Voltage

400/230V, 3-Phase

50 Hz · PF 0.8 lagging

Technical Specification

Power Ratings

Standby kVA	2000 kVA
Standby kW	1600 kW
Standby Current	2887 A
Prime kVA	1850 kVA
Prime kW	1480 kW
Prime Current	2670 A
Frequency	50 Hz
Voltage	400/230V, 3-Phase
Power Factor	0.8 lagging

Engine

Make & Model	Perkins 4016-61TRG1
Optional Engine	Cummins QSK60-G3
Cylinders	16-Cyl Vee
Displacement	61.123 Liters
Bore × Stroke	160 × 190 mm
Aspiration	Turbocharged & Aftercooled

Alternator

Make & Model	Leroy Somer LSA52
Options	Stamford PI734A / Mecc Alte ECP50-3VL
AVR	Digital R450
Voltage Regulation	±0.5%

Control & Fuel

Controller	Auto Mains Failure (AMF)
Controller Model	DSE 7320 MKII Co
Fuel Tank	3150 Liters L
Runtime @ 75%	11.4 Hours
Cooling	Water-Cooled, Radiator Mounted
Max Ambient	40°C

Dimensions & Weight

Open Frame (L×W×H)	5839×2196×2605
Open Frame Weight	12215 kg
Silent Canopy (L×W×H)	12192×2438×2896
Silent Canopy Weight	26500 kg
