KORDEN · Diesel Generator Set

KDN-P900

Name: KDN-P900
Brand: Arab Tower

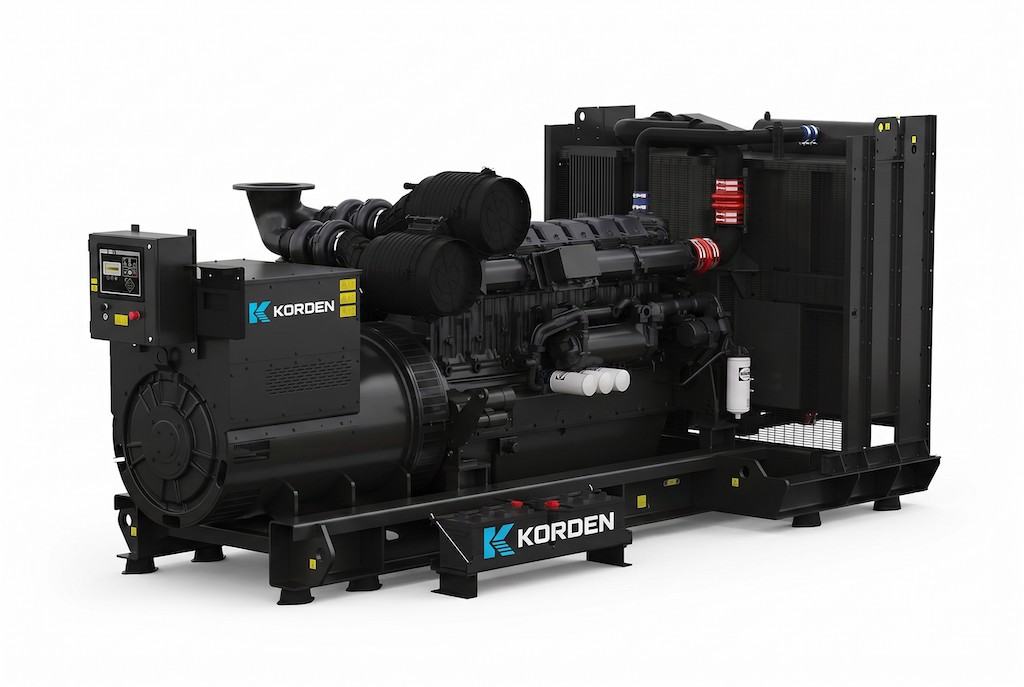

892 kVA standby diesel generator set. Powered by Perkins 4006-23TAG3A with Leroy Somer TAL049D and Auto Mains Failure (AMF) control — supplied, installed, tested and commissioned.

Request a Quotation Download Datasheet

Standby

892

kVA · 713 kW

Prime

800

kVA · 640 kW

Voltage

400/230V, 3-Phase

50 Hz · PF 0.8 lagging

Technical Specification

Power Ratings

Standby kVA	892 kVA
Standby kW	713 kW
Standby Current	1288 A
Prime kVA	800 kVA
Prime kW	640 kW
Prime Current	1155 A
Frequency	50 Hz
Voltage	400/230V, 3-Phase
Power Factor	0.8 lagging

Engine

Make & Model	Perkins 4006-23TAG3A
Optional Engine	Cummins VTA28-G5
Cylinders	6 In-Line
Displacement	22.9 Liters
Bore × Stroke	160 × 190 mm
Aspiration	Turbocharged & Aftercooled

Alternator

Make & Model	Leroy Somer TAL049D
Options	Stamford HCI634G / Mecc Alte ECO46-2S
AVR	Digital R450
Voltage Regulation	±1%

Control & Fuel

Controller	Auto Mains Failure (AMF)
Controller Model	DSE 7320 MKII Co
Fuel Tank	1400 Liters L
Runtime @ 75%	11.9 Hours
Cooling	Water-Cooled, Radiator Mounted
Max Ambient	40°C

Dimensions & Weight

Open Frame (L×W×H)	4788×2046×2419
Open Frame Weight	5818 kg
Silent Canopy (L×W×H)	5800×2150×2540
Silent Canopy Weight	7300 kg
